Description

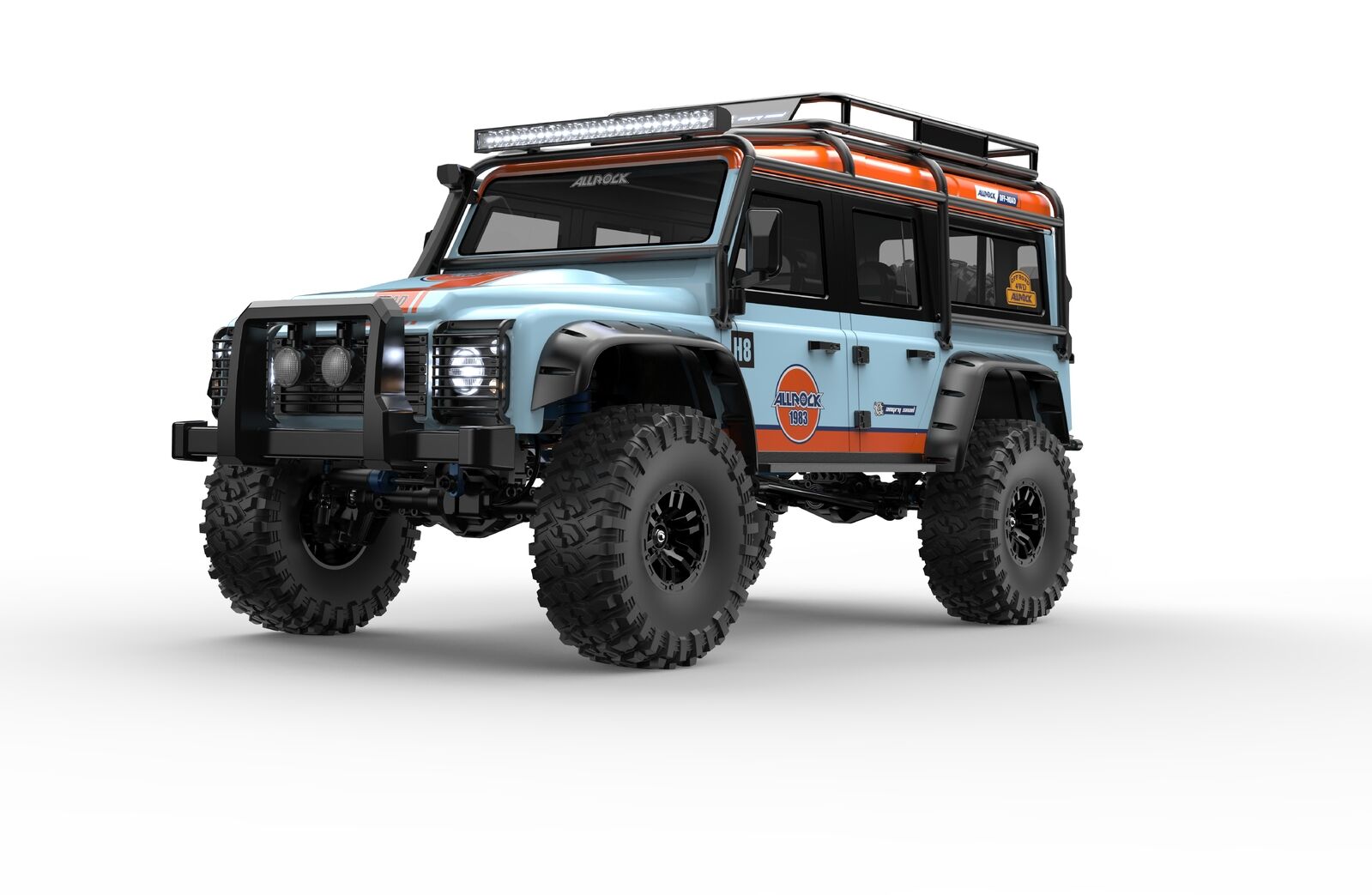

MJX's brand new ALLROCK series large scale RC Crawlerispacked full of features.

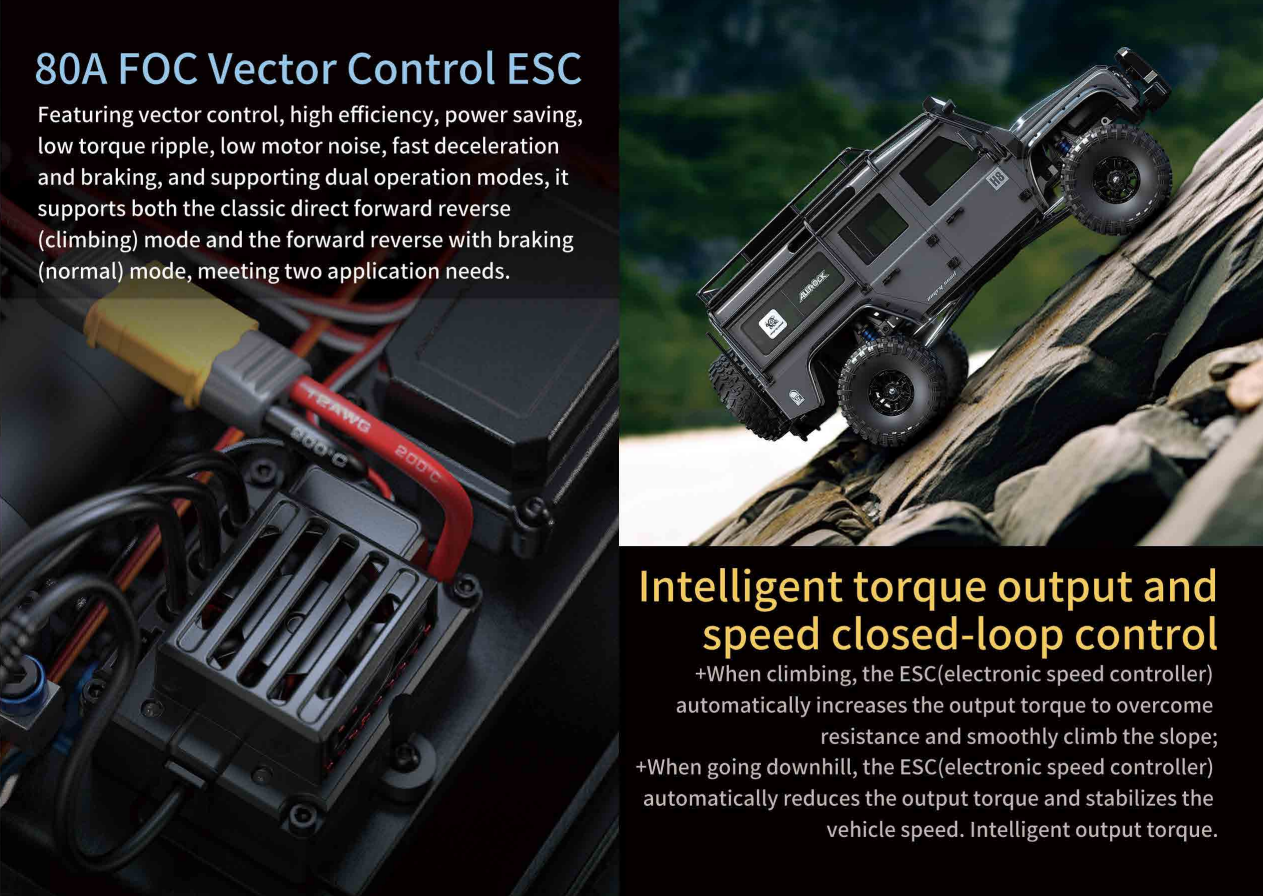

The brushless motor offers vector control, high effiiciency, power saving, low torque,low motor noise, fast deceleration and braking and supporting dual operation modes. It supports both the classic direct forward reverse (climbing) mode and the forward reverse with braking (normal) mode, meeting two application needs.
Whether climbing or descending the ESC will automatically increase the output torque to overcome any resistance and help move smoothly over the slope or reduce the torque to stabalize the vehicle speed for seamless descent.
With it's powerful built-in BES with a maximum 13A output current and a 6V/7.4V switchable output voltage, the system can be configuredforstandard servos and high-voltage servos, as well as peripheral electrical equipment (lamp sets, winches, etc.). The ESC also has a buit-in chip magnetic encoding sensor, which helps improvethe accuracy by 60%, compared to the hall sensor commonly used in ordinary inductive brushless motors. The three-phase signal consistency always outputs pure and an accurate rotor position signal.
The ESC has bluetooth app connectivity in order to adjustparameters on the the fly. Settings includeadjusting Drag Brake, Neutral Range, Real time battery monitoring and Motor & ESC temperatures.

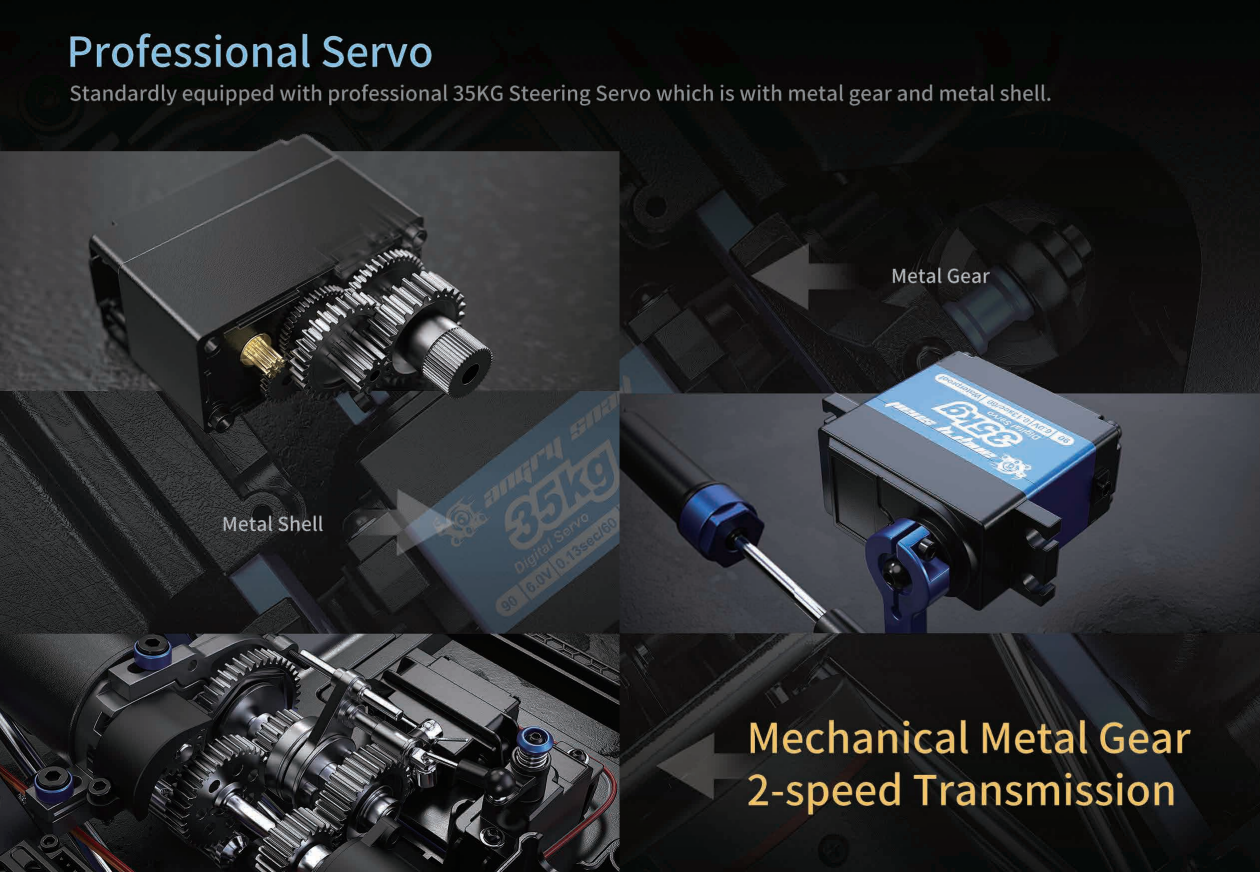

The MJX Allrock boastsan IP67 rating for both Dust and Water protection.The MJX Allrockalso features a professional servo as standard, rated at 35kgwith a metal gear and shell.

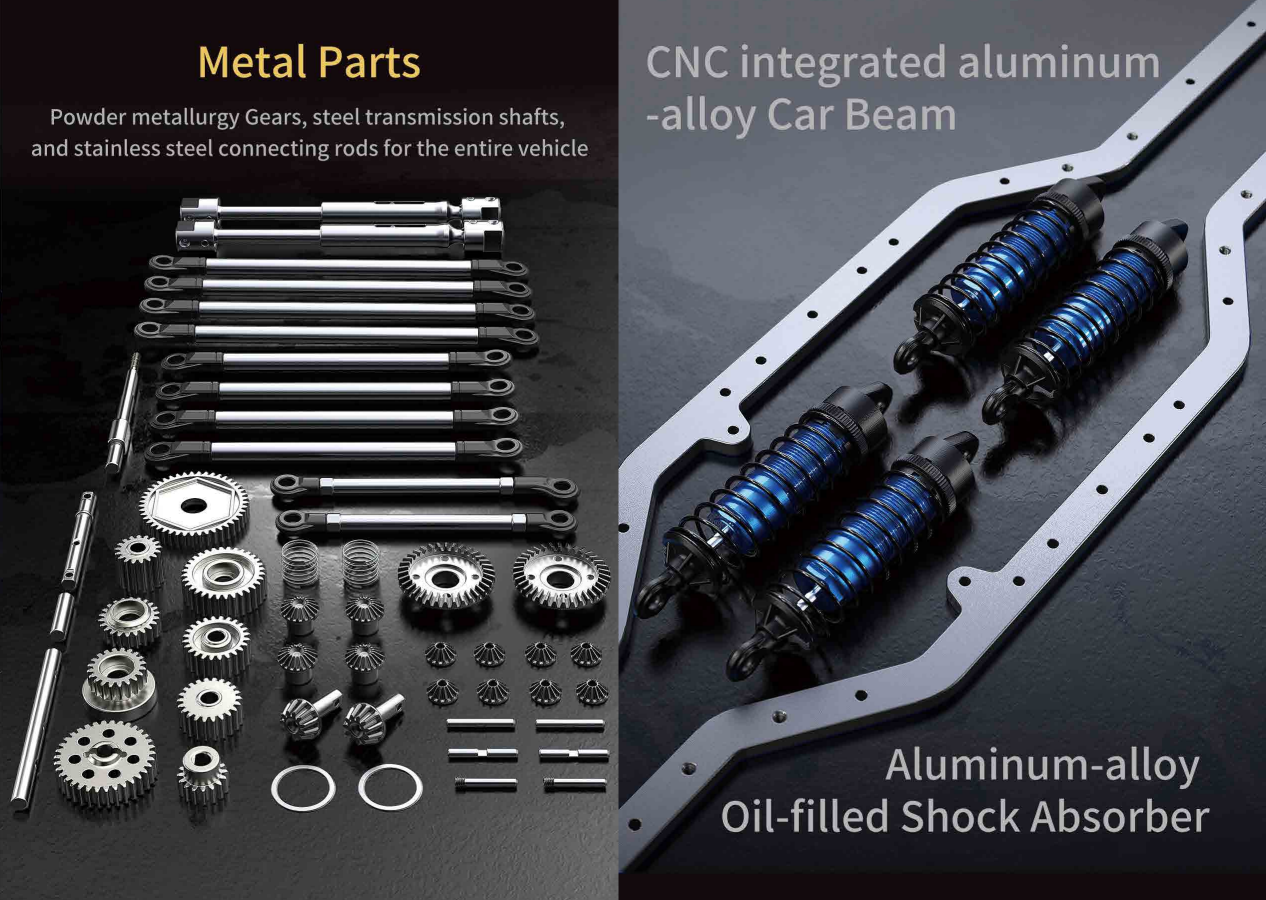

From front to back the MJX Allrock has been designed and assembled for the utmost in performance.The drivetrain is ametal geared, 2-speed transmission withfront and rear axle differential lock. Steel transmission shafts and stainless steel connecting rods throughout the entire vehicle withCNC integrated aluminium-alloy chassis railsand aluminium-alloy oil-filled shock absorbers to handle anything you throw at it.
Mounted with 140 LED light beads, the driver canindependently control each light group. Afront and rear battery compartment allows the driver to position the weight of the battery where you need it on the fly without any tools or additional parts for maximum traction when climbing.
Technical Data:
- Scale 1/8
- 35kg metal servo
- Magnetic Encoding Sensing Brushless power kit
- 80A FOC Vector Control ESC

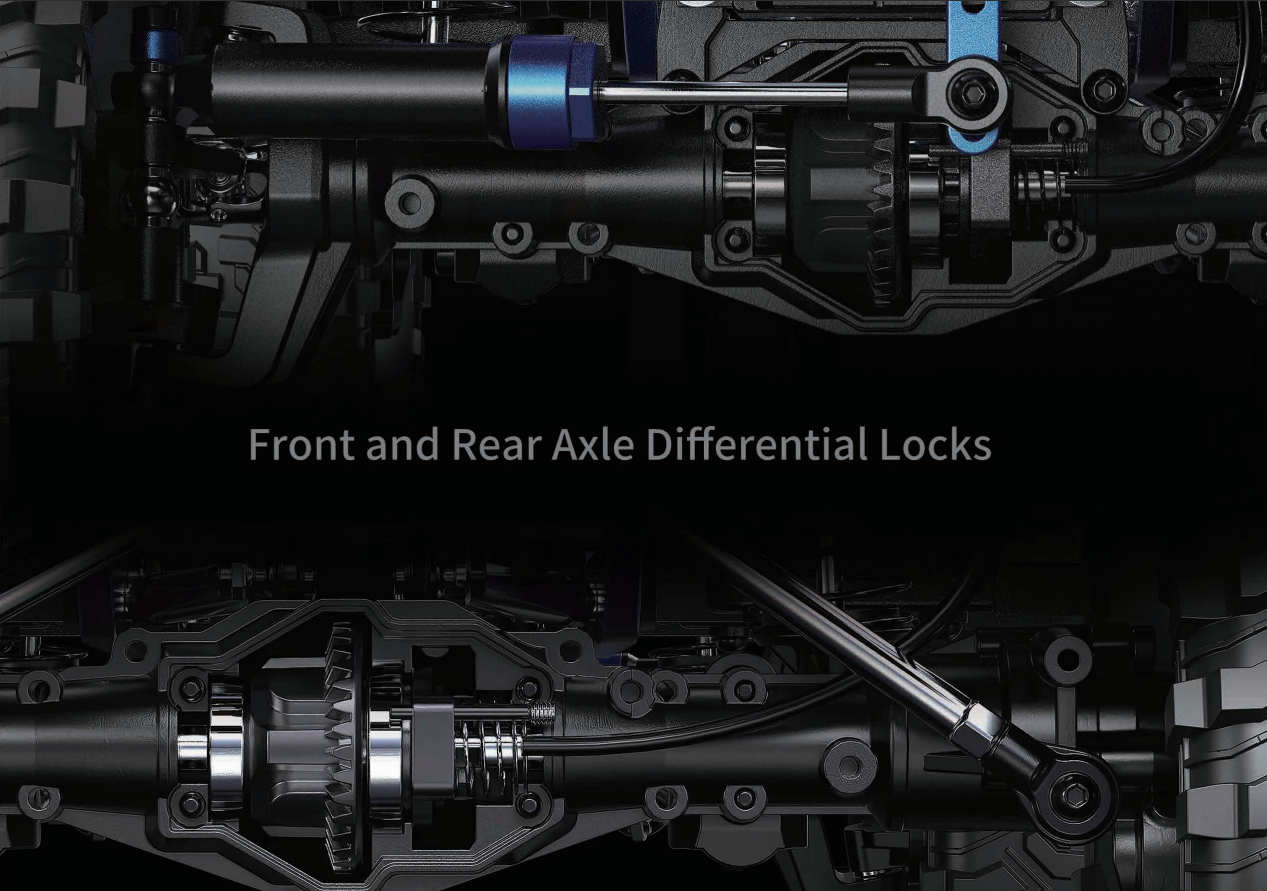

- Front and rear locking Differentials
- Stainless steel connecting rods and steel transmission shaft
- CN alloy car beam
- Aluminium-alloy oil-filled shocks
- Front and Rear battery compartments
- IP67 dust and water protection
- Measurements:
- Wheelbase 373mm
- Body Measures: 680 x 298 x 325 mm
What's in the Box:
- 2.4 GHz 1/8 RC Crawler
- 8 channel 2.4 GHz remote control
- EPP storage case
- MJX user manual
Needed to Complete:
- 2S or 3S battery with XT60 plug and a suitable charger
- 4x AA batteries
