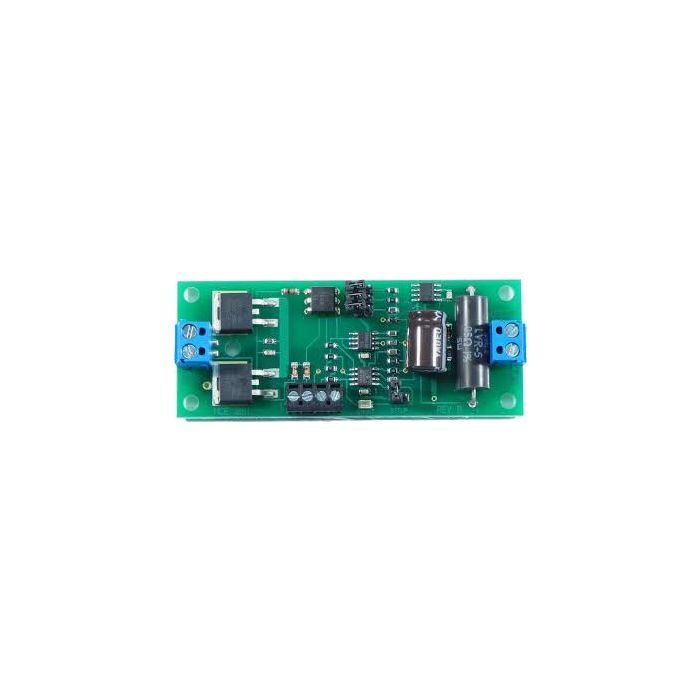

Nce - Eb1 Electronic DCC track power Circuit Breaker

SKU: NCE225

$79.99

Nce - Eb1 Electronic DCC track power Circuit Breaker

SKU: NCE225

$79.99
4 payments of $20.00 with afterpay
Or Buy Now Pay Later
Description
Provides short circuit protection for one power district. Can be used with most DCC systems. Default trip time is 30 times faster compared to the basic overload setting in all NCE systems.

Electronic circuit breaker for use on DCC layouts only.Does not work with DC.

 Provides short circuit protection for one power district

 Trip current adjustable for1.5to 8 Amps

 Easy hookup using screw terminals, no soldering

 Status indication LED - goes OFF when no track power is present.

 Additional output for remote LED

 Optional manual reset if you attach an external momentary push button

 Adjustable short circuit response time. Default of 16mS.

 Adjustable power-up response time to accommodate startup of sound decoder equipped locomotives

Important notes about setting up the EB1 version 1.1:

1. Ignore the "123" label on the switch block. Please use the ABC on the printed circuit board for setting the EB1 to the correct current rating for your layout.

2. Do not assume the EB1 is 100% correctly set out of the package for your particular situation.In the picture above the EB1 is set for 1.5 amps with all three switches AWAY from the ABC.

3. If you need the absolute maximum capacity from your Power Cab at all times you can use the 2.2 amp setting with the caveat that your layout is properly wired with a 12ga. or 14ga. bus wire. Terminal strips are recommended to accommodate transitioning from longer distance heavy gauge wires to a shorter distance smaller wires gauge to make proper board connections.
