Axial - SCX10 II 1955 Ford F-100 1/10 Crawler - RTR (Brown)
AXI03001T1
SKU: AXI03001T1
Axial
SCX10 II - 1955 Ford F-100 1/10 Crawler
RTR - Brown
The benchmark in performance and durability for off-road scale RC driving has long been the SCX10 II chassis. Axial have now topped this platform with a licensed scale classic – the 1955 Ford F-100 in all its 1/10th scale glory. Tackle the trails with this 4WD classic and the fun won’t stop!
Features:
- Classic combination of battle proven Axial SCX10 II chassis mounted with an officially licensed 1955 Ford F-100 body
- Clean and durable officially licensed METHOD Hole wheels
- Moulded R30 compound tyres officially licensed from Maxxis Trepador that provide superb grip
- Single piece moulded truss design on the AR44 front/rear axles provide lasting durability
- Reduced torque twist associated with small pumpkin axle designs has been dramatically reduced with an optimized gear ratio of 3.75
- Additional ground clearing high pinion design increases gear surface contact, and, improves driveshaft angles resulting in improved durability
- Up to 45 degrees of steering achieved through universal joint axles that allow a smoother action which in turn makes the high performance drive-train more efficient
- On board components are easily reached through hinged body system
- Battery tray is adjustable in order to accommodate battery size up to 32 x 44 x 147mm (3S 5000mAh) and is also placed to improve centre of gravity and weight distribution
- Adjustable suspension using realistic shock hoops with multiple shock mounting positions

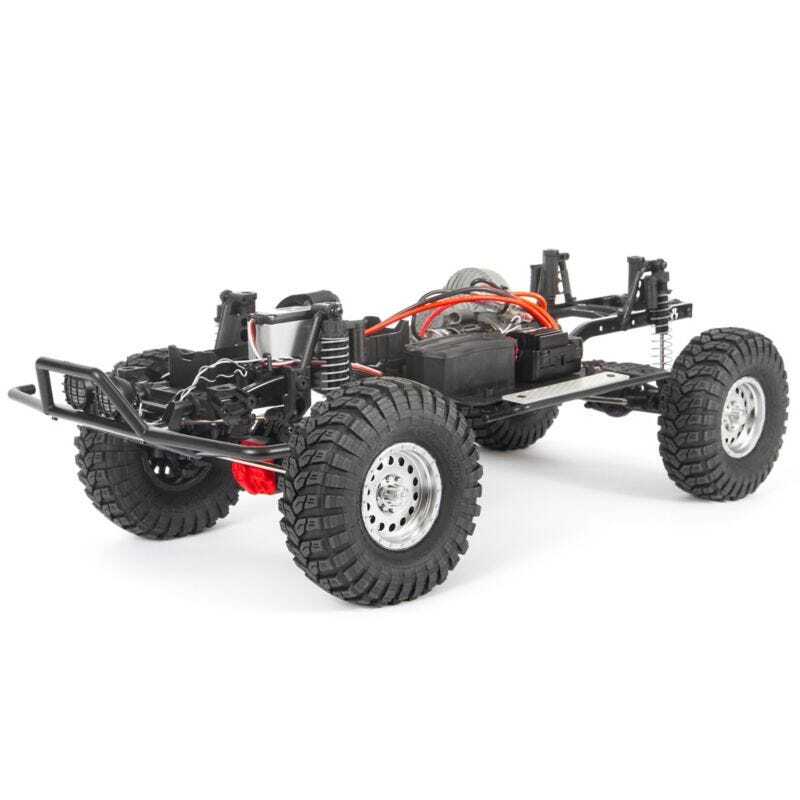

- High strength steel C-channel chassis frame with realistic design and cross braces for increased rigidity
- Tune your dampening rate with coil-over oil filled shocks with threaded shock bodies
- Bump steer nearly eliminated by front suspension design
- Steel links on steering and suspension with large M4 rod ends for improved wear
- Adjustable mounting system for scale looking chassis mounted servo
- Variable speed settings from super high to competition level crawling speed through adjustable AX10 transmission gearing ratio and different pinion and spur gear choices
- Increased surface area through dual slipper design which uses a pad on each side of the spur gear that allows more holding power and precise tuning
- WB8 HD Wildboar 3piece front/rear driveshafts with reduced fatigue and flex achieved through the use of a strengthented sliderfloater tube
- Easily accessible side plate location for waterproof receiver box that also improves the low centre of gravity
- Easily switch on the go between LiPo and NiMh with the AW5L Dynamite ESC that is up to 3S LiPo capable
- Reduced torque twist and axle steer achieved using an optimized 4link design built into the rear suspension geometry
- S605 Servo, SRX200 Receiver and STX2 Transmitter – all by Spektrum
- Rollbar/cage is attached to the cab and mounted to the bed for added protection
Specs:
- Type: Scale 4x4 Crawler
- Completion Level: Ready-to-Run
- Scale: 1/10
- Length: 19.25 in (489 mm)
- Width: 9.5 in (241 mm)
- Height: 9.6 in (245mm)
- Weight: 4.5 lb (2.04 kg)
- Ground Clearance: 3.0 in (77 mm)
- Wheelbase: 12.3 in (313 mm)
- Track: 9.1 in (230 mm)
- Chassis: Stamped Steel C Channel
- Suspension: Solid Axle, Front and Rear
- Shock Type: Coil-over 2.5-3.5 in (61-90mm) Injection molded
- Drivetrain: 4WD
- Differential: Bevel Gear 30T/8T
- Wheel Type: Officially licensed 1.9 Method Hole Wheels (Satin Chrome)
- Wheel Diameter: 2.12 in (53.9 mm)
- Wheel Width: 1.02 in (26 mm)
- Tyre Compound: S30
- Tyre Tread: 1.9 Maxxis Trepador
- Tyre Diameter: 4.6 in (116.8 mm)
- Motor Type: Brushed
- Motor Size: 540
- Pinion: 13T
- Spur Gear: 56T
- Gear Pitch: 32P
- Speed Control Included: Dynamite AE-5L with Drag Brake
- Radio: Spektrum STX2 2.4GHz 2-Channel with SRX200 Receiver
- Servo Included: Spektrum S605 Analog
- Body: Polycarbonate
- Ball Bearings: Throughout
- Experience Level: Beginner
- Recommended Environment: All-Terrain
- Is Assembly Required: No
Requires:
- Battery pack with EC3 connector
- Battery charger
- 4 x AA batteries for the transmitter
