Axial - SCX10 III Jeep JLU Wrangler 1/10 Crawler Kit

AXI03007

SKU: AXI03007

WAS $729.00
RRP $749.00
NOW $649.00
SAVE 13%!
Share:

or 4 payments of $162.25 with Info






Axial

SCX10 III Jeep JLU Wrangler w/Portals
1/10th Crawler Kit

The 1/10 scale Axial SCX10 III Jeep JL Wrangler 4WD kit marks the next step forward in scale off-road action. While continuing to incorporate key components that have made SCX10 vehicles successful, the SCX10 III increases chassis realism with details that include a replica V8 engine to house a front-mounted 540 motor. It’s mated to a realistic transmission housing and transfer case, like a 1:1 vehicle.

The kit’s versatile transmission can be built in several ways. If you’re using a 3-channel radio like the Spektrum DX3, you can set it up with a third-channel DIG function that lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius. Another 3-channel option is to set up the vehicle with a two-speed transmission to select between high and low speeds. To have access to the two-speed transmission and DIG function simultaneously, just add another servo and use a radio with at least four channels (such as the 5-channel Spektrum DX5).

Features
  • Replica V8 engine, transmission housing and transfer case cover and protect the motor while improving scale appearance

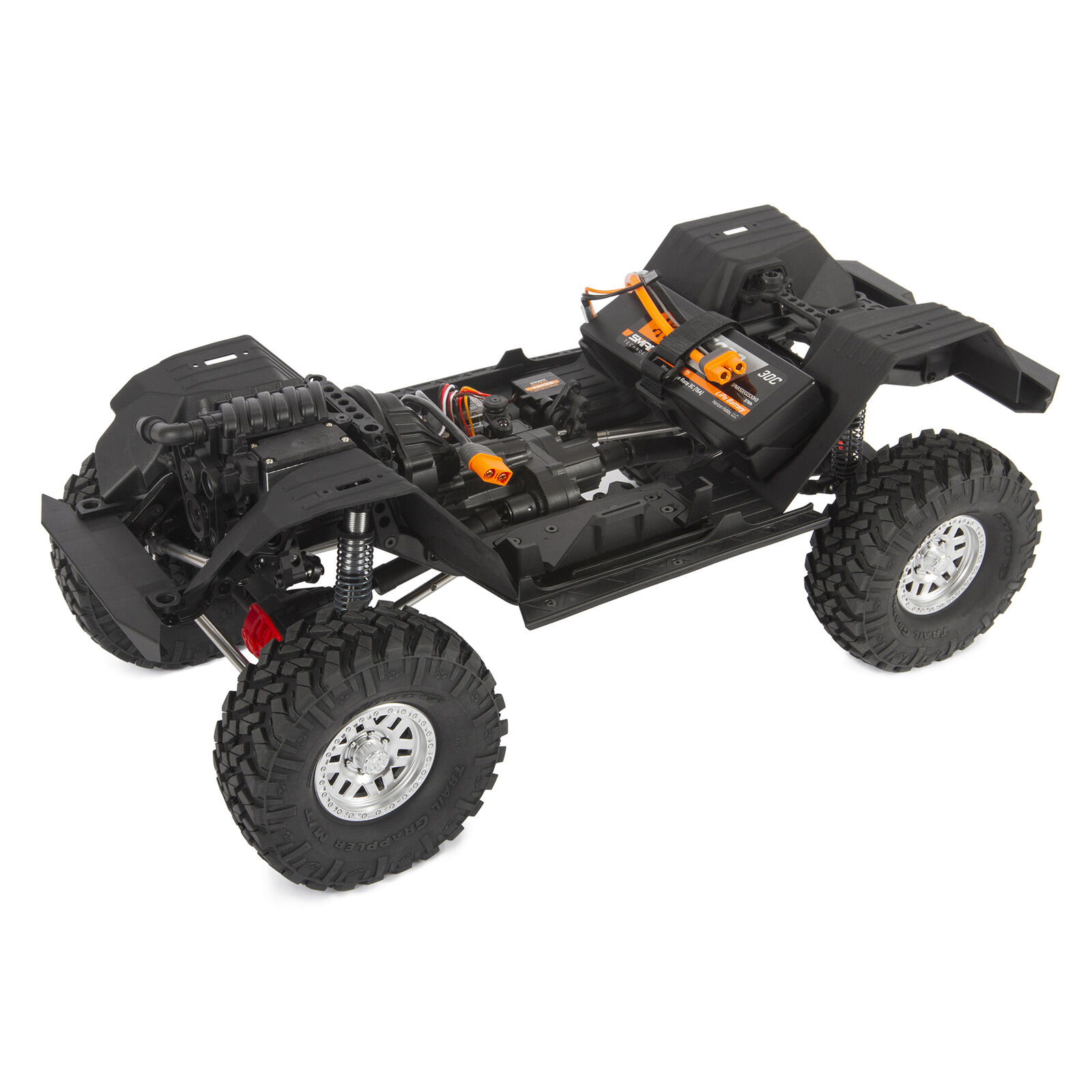

  • Chassis tray accepts full-size, standard LiPo or NiMH batteries, with space on the side rails for running small pack sizes
  • DIG function transmission setup lets you lock the rear axle from the transmitter for front-wheel drive and a tighter turning radius
  • Two-speed transmission setup option also available for high and low speeds
  • Portal axles increase ground clearance and reduce torque twist
  • Adjustable wheelbase chassis allows each driver to choose the size of their chassis
  • Inner fenders and floor sides hide internal components usually visible from the side of the chassis
  • Licensed KMC Machete 3-piece beadlock wheels provide scale looks and let you remove and replace tyres without gluing
  • Officially licensed Nitto Trail Grappler tires in a new taller and wider size increase ground clearance and grip
  • Fully rebuildable, oil-filled shocks include hard anodized, threaded shock bodies, coilover springs, and an emulsion-style cap with a screw for easier rebuilds

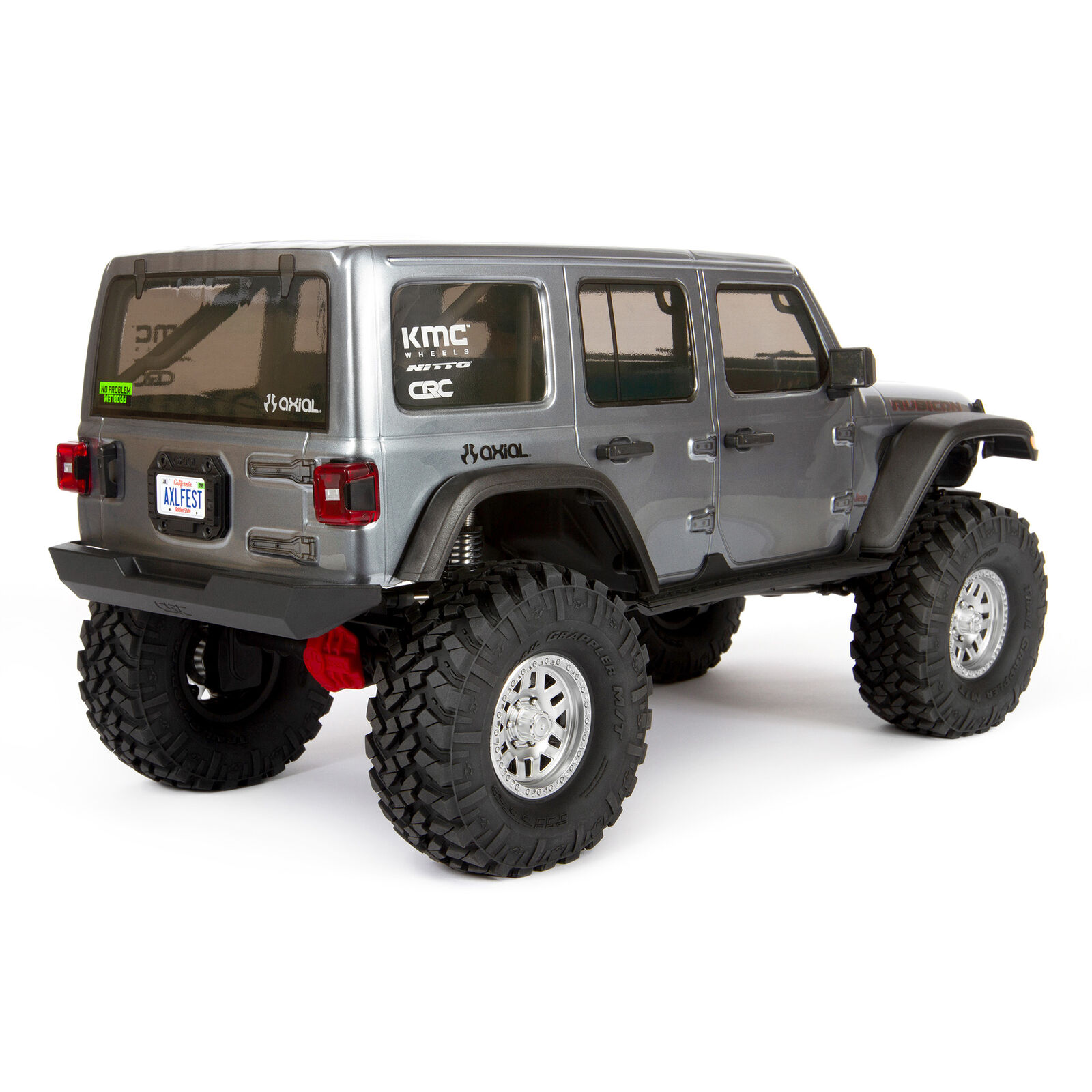

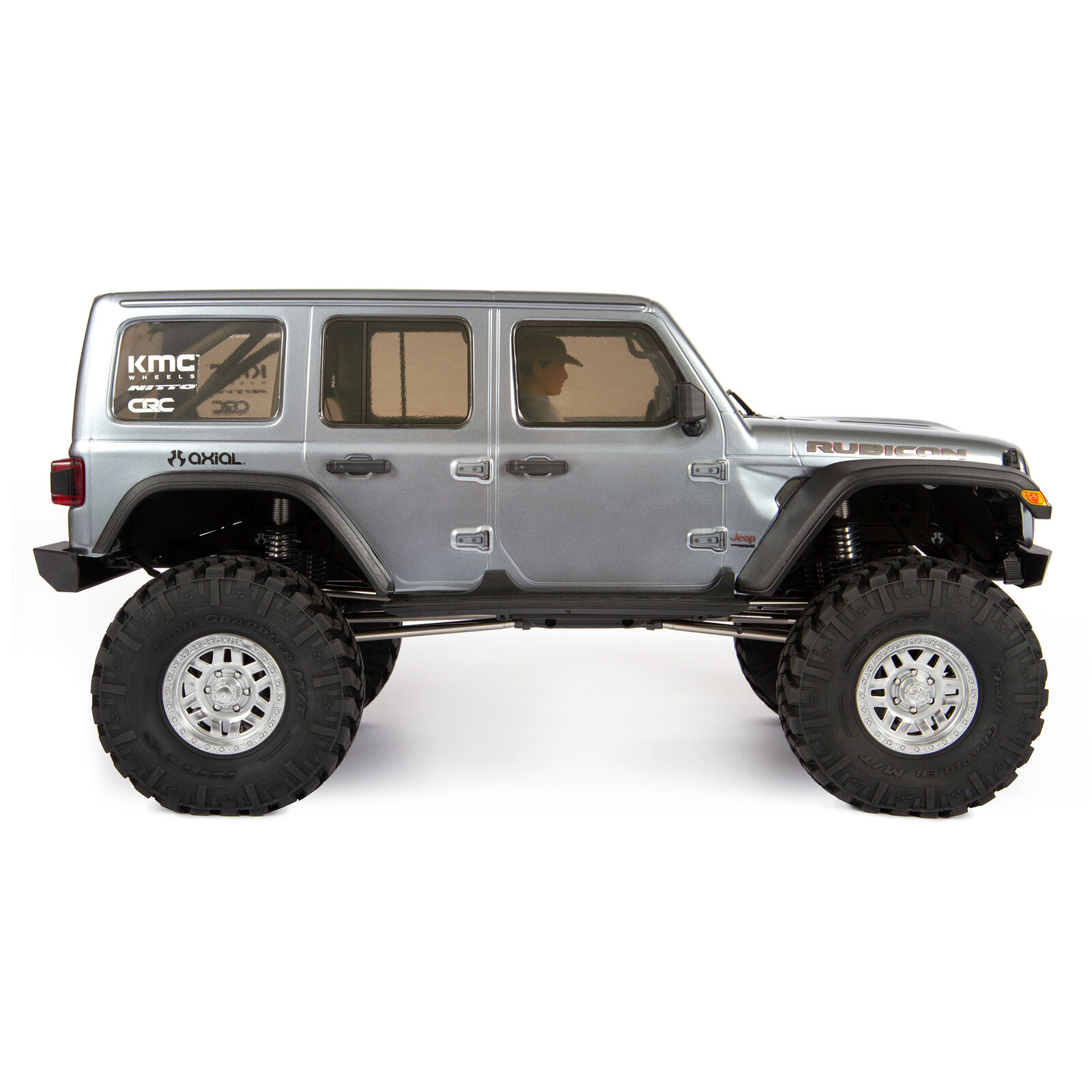

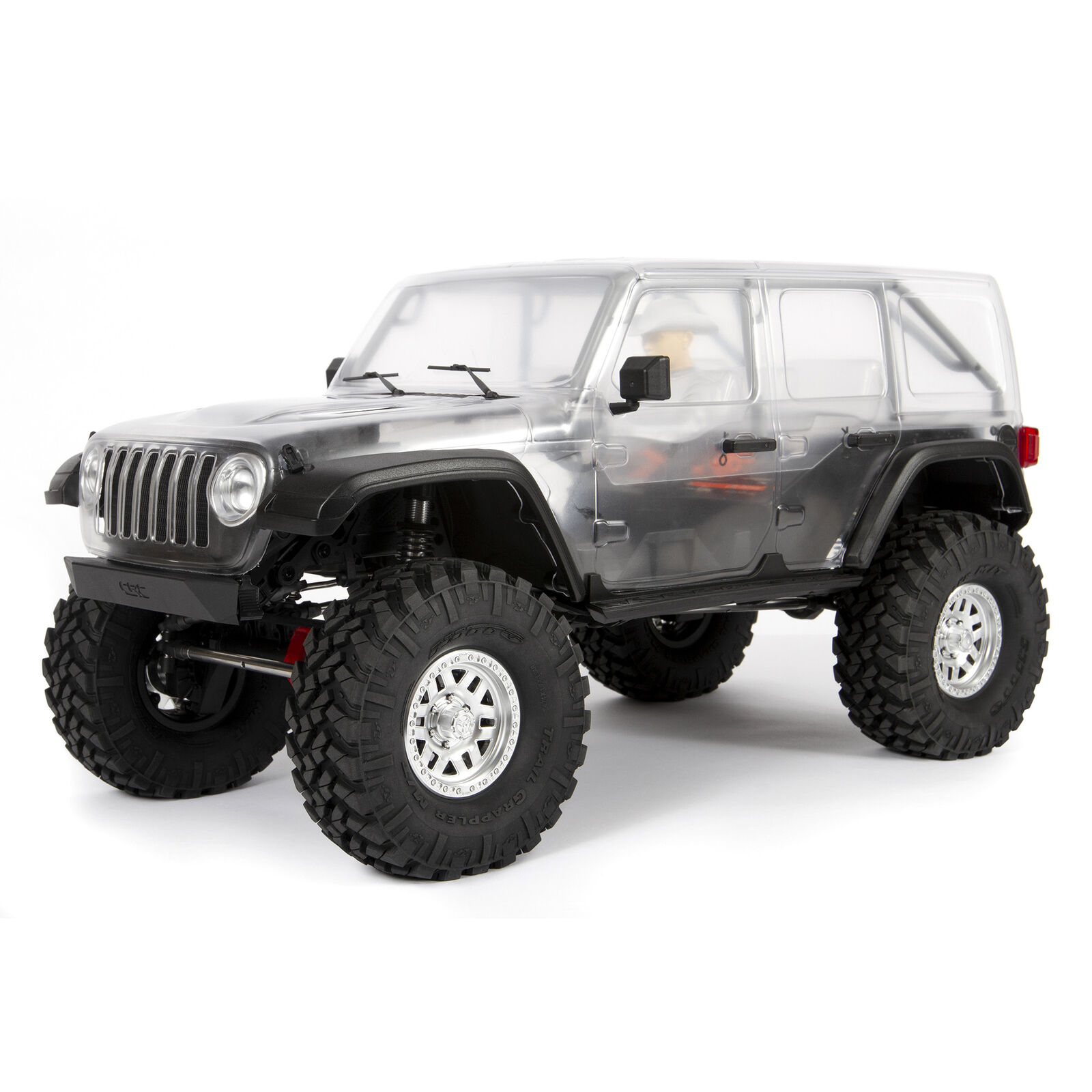

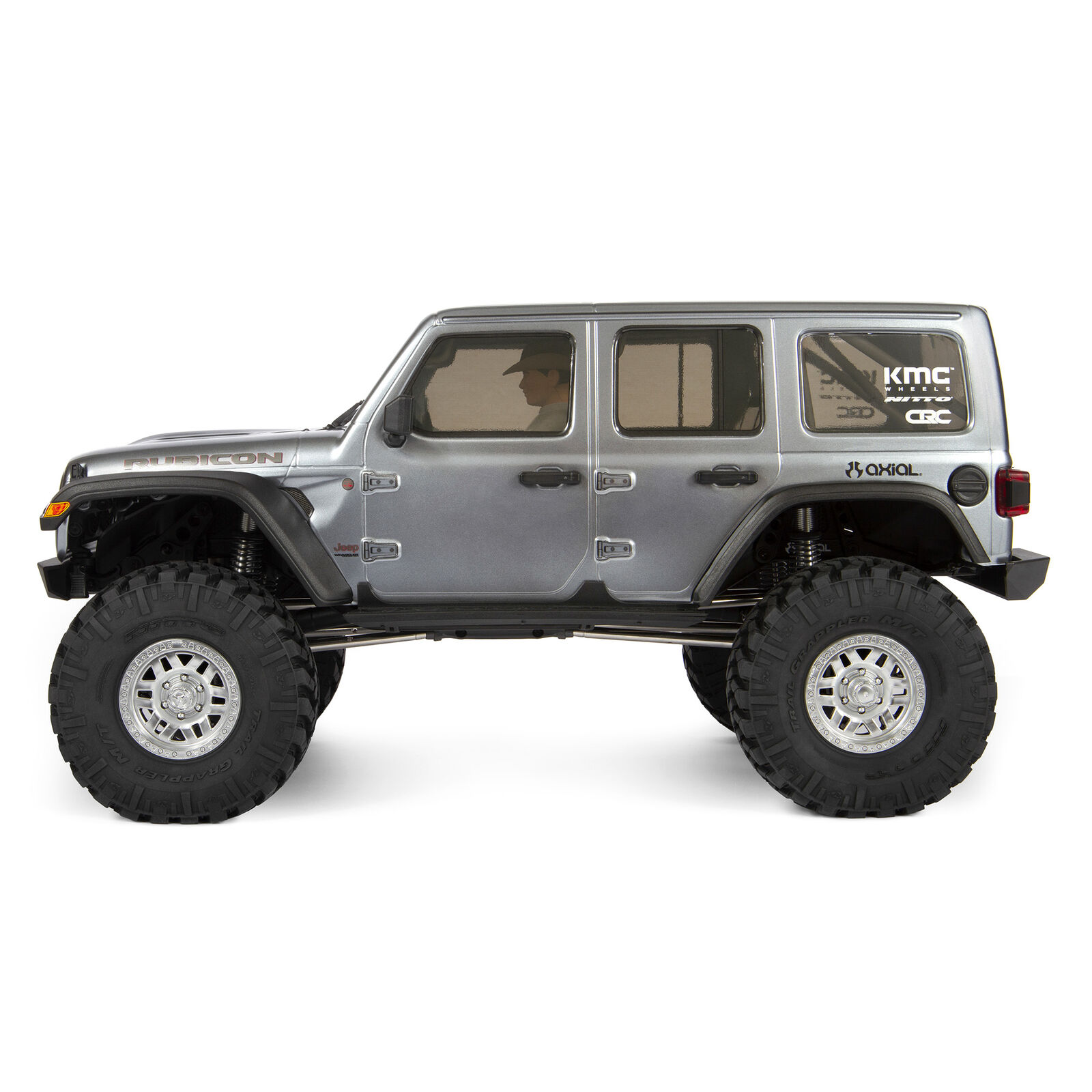

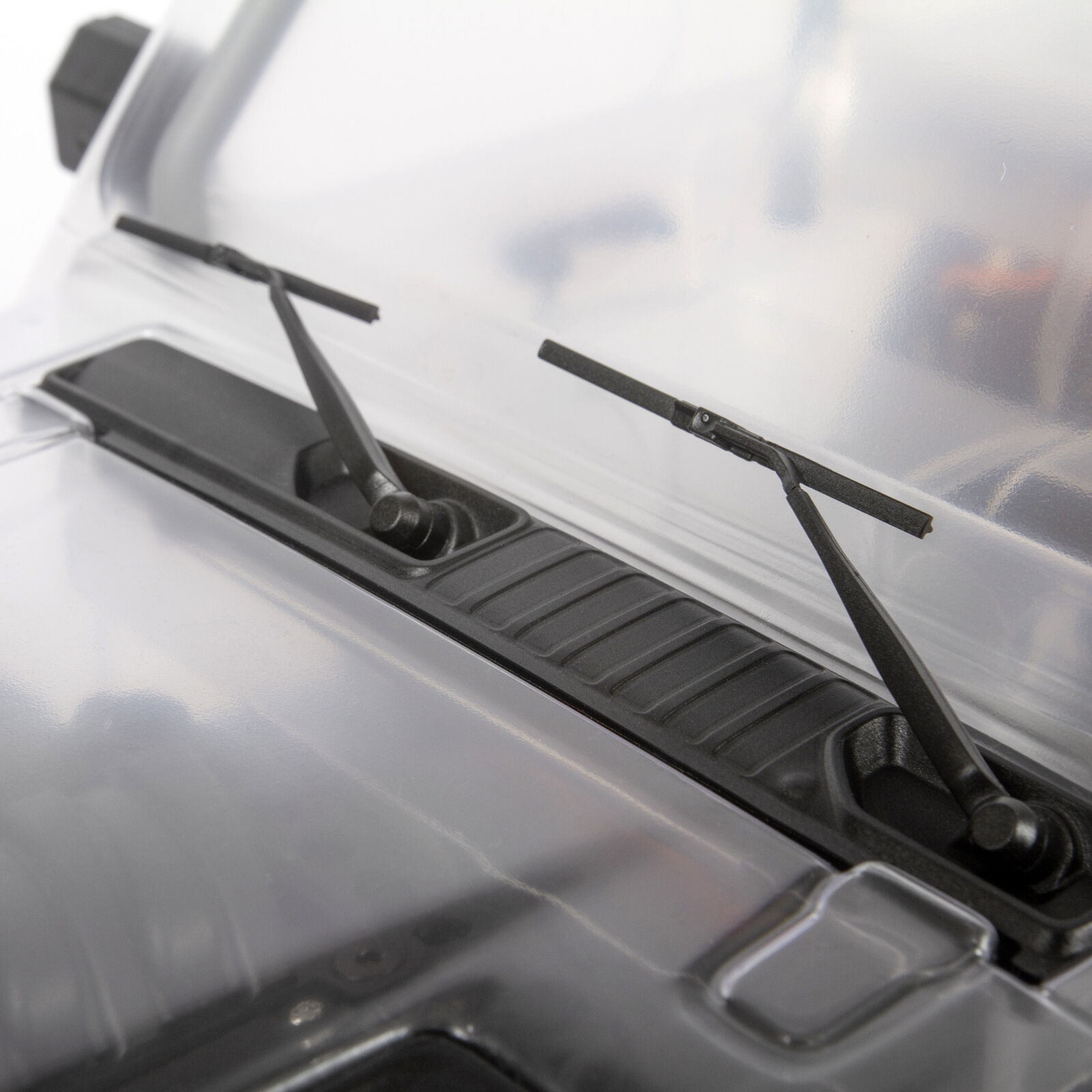

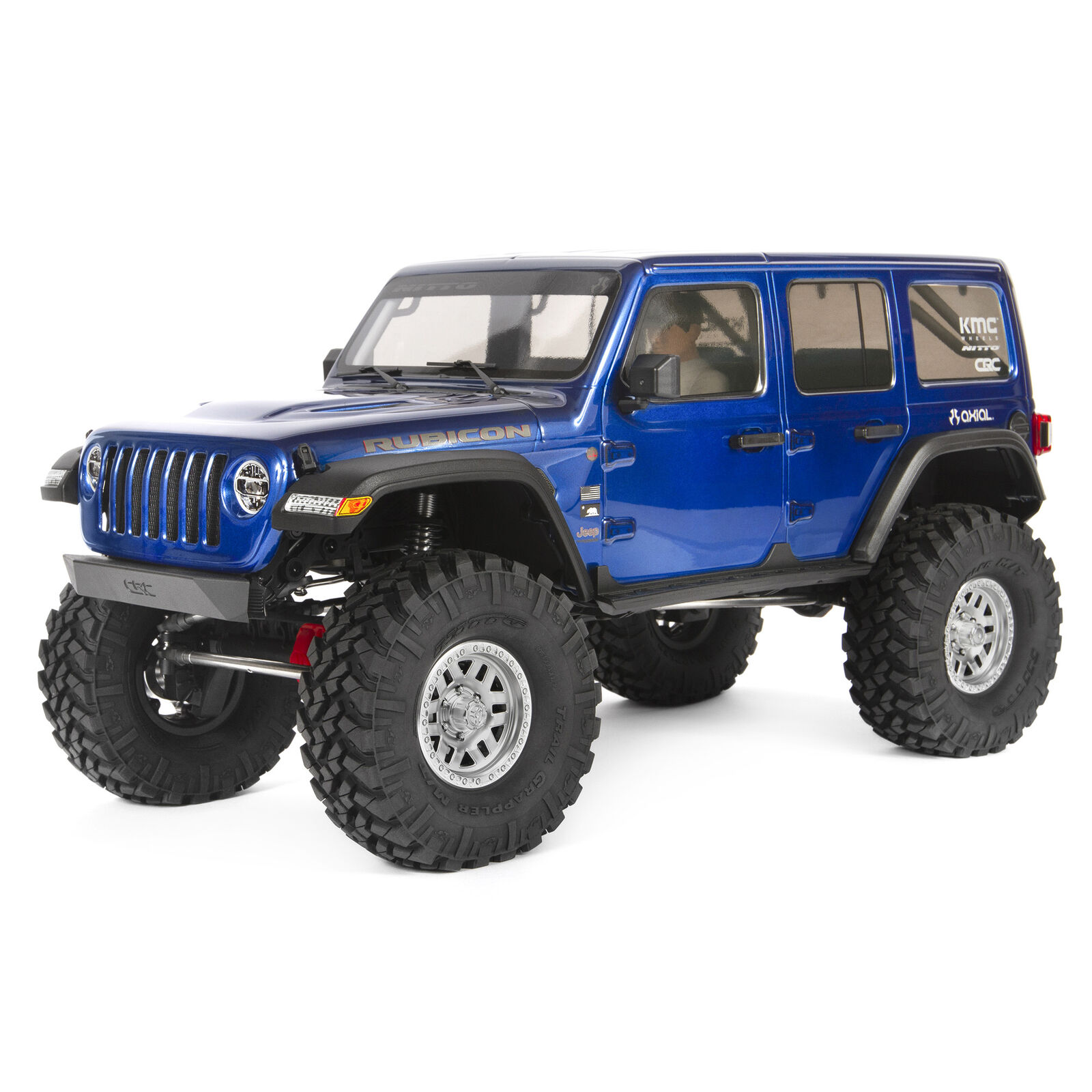

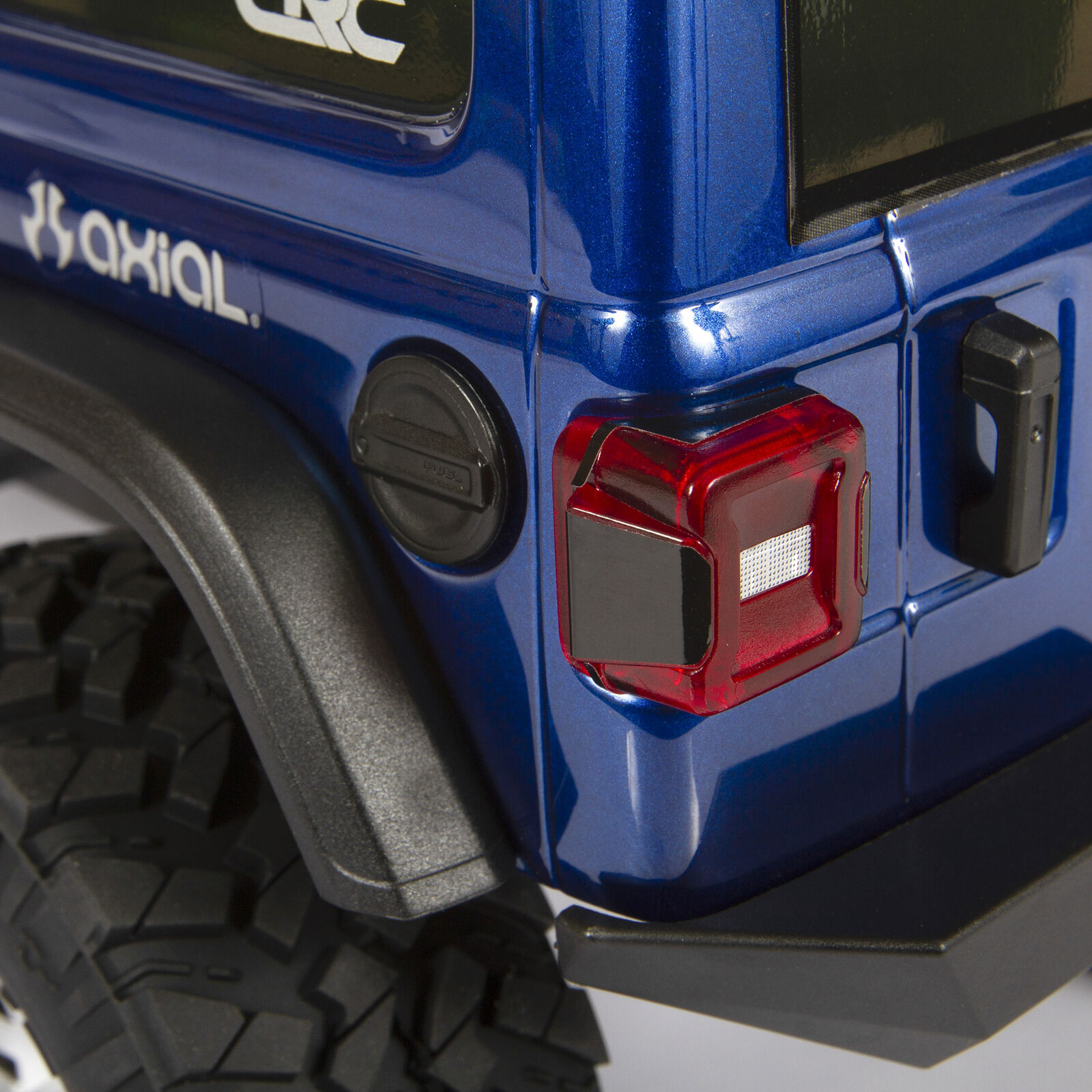

  • Clear scale Jeep Wrangler Unlimited body with detailed interior

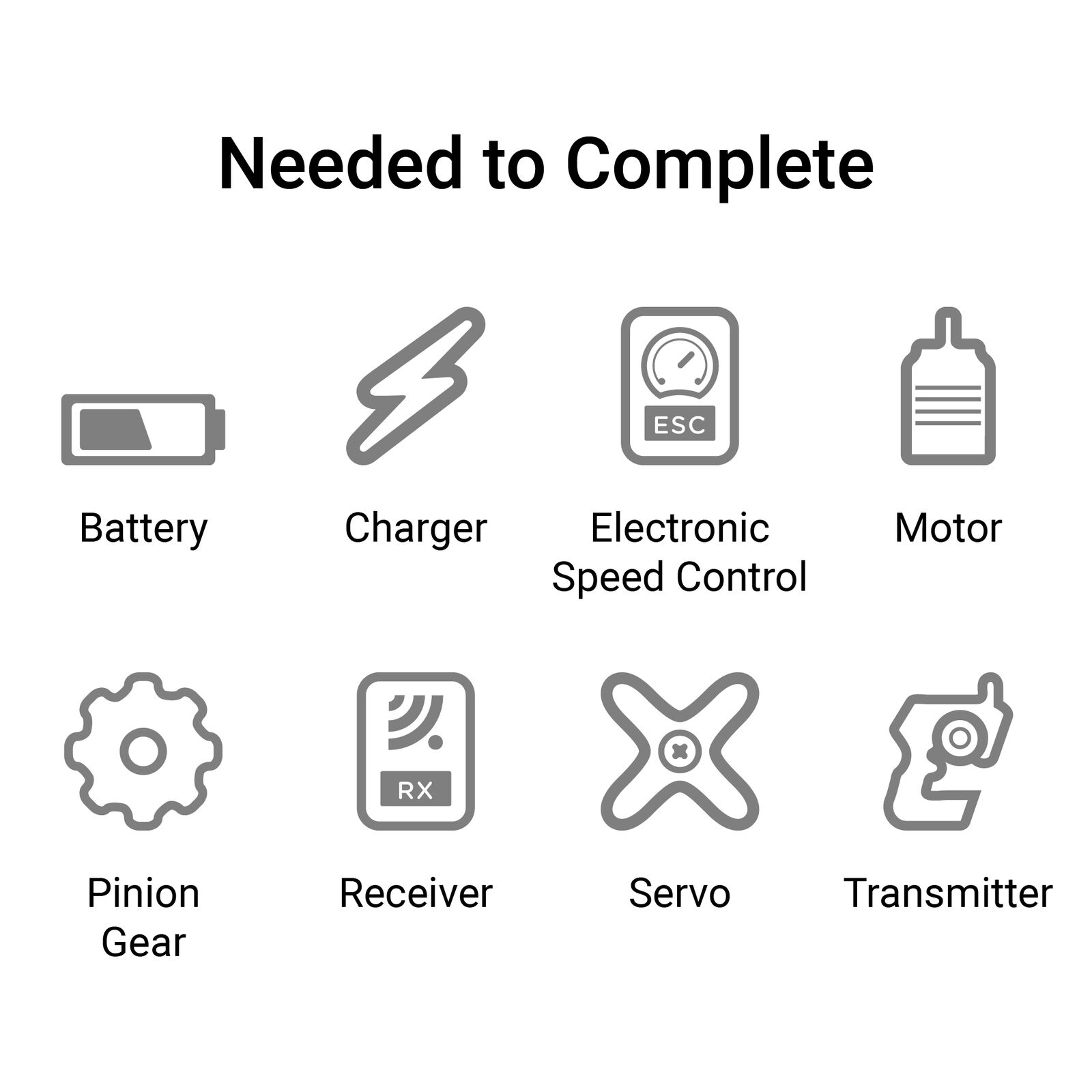

Requires:

  • 4-Channel transmitter
  • 4-Channel receiver
  • Steering servo
  • ESC (electronic speed controller)
  • Electric motor
  • Micro servo for rear dig feature
  • Micro servo for 2-speed feature
  • Battery (accepts standard and shorty packs)
  • Battery charger
  • AA batteries for transmitter
  • Paint (for polycarbonate plastic)

Specs:
  • Type: "Scale" 4x4 Crawler
  • Completion Level: Kit
  • Scale" 1/10
  • Length: 19.125" (485mm)
  • Width: 9.25" (234mm)
  • Height: 9.5" (241mm)
  • Weight: 6.5 lb (2.9kg)
  • Ground Clearance: 3" (76.2mm)
  • Wheelbase: 12.3” (312mm)
  • Track: 8.9" (226mm)
  • Front Track: 8.9" (226mm)
  • Rear Track: 8.9" (226mm)
  • Chassis: Adjustable Steel C-channel
  • Suspension: Multi-Link Solid Axle
  • Shock Type: Oil-Filled/Coil-Over Spring
  • Drivetrain: 4WD (locked front and rear)
  • Differential: Locked
  • Wheel Type: Injection Molded 3-piece beadlock
  • Wheel Diameter: 1.9" (48.3mm)
  • Wheel Width: 1" (25.5mm)
  • Tyre Compound: R30
  • Tyre Tread: Nitto Trail Grappler M/T
  • Tyre Diameter: 4.7 in (119mm)
  • Motor Type: Brushed
  • Motor Size: 540
  • Pinion: 14T
  • Gear Pitch: 32-Pitch
  • Final Drive Ratio: 45.6:1
  • Speed Control Included: No
  • Servos Included: No
  • Body: Polycarbonate
  • Ball Bearings: Complete Vehicle
  • Experience Level: Intermediate
  • Recommended Environment: All-Terrain
  • Is Assembly Required: Yes
  • Approx. Assembly Time: 7-9 Hours
