FlySky - R4D Electronic Speed Control 40amp

SKU: FSR4D

$49.00

FlySky - R4D Electronic Speed Control 40amp

SKU: FSR4D

$49.00
Or Buy Now Pay Later
Have a Question
Description

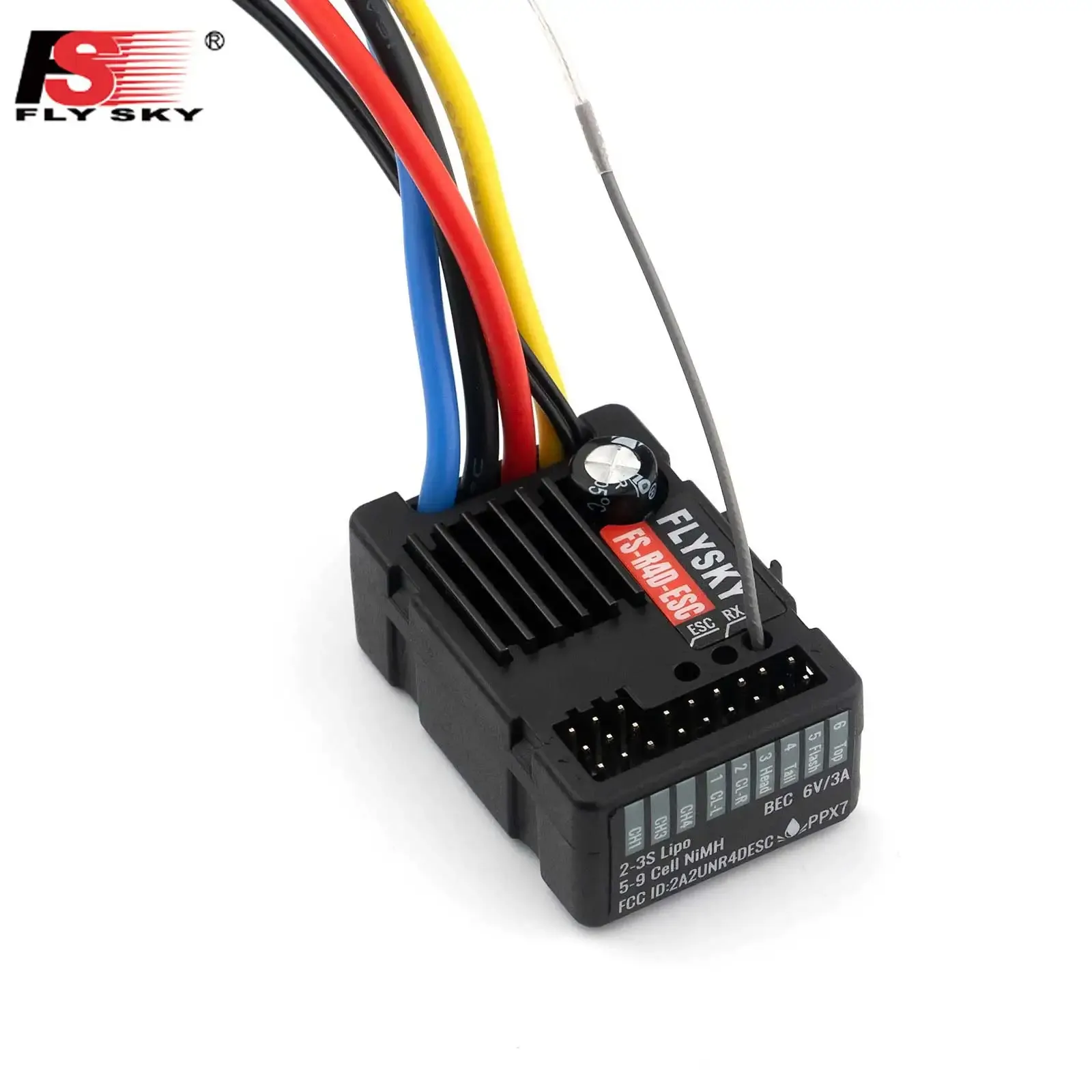

FS-R4D-ESC is an ANT-compliant 2-in-1 two-way proprietary receiver, integrated with Electronic Speed Control (ESC) and LED light set control. Its features are as follows:

  • Compact design
  • External single antenna
  • Output of PWM signals and car light control signals
  • Two-way transmission
  • Automatic binding
  • ESC parameters configurable at the transmitter side
  • Battery voltage protection and over-voltage protection
  • Overheating protection
  • Locked rotor protection
  • Adaptation to a variety of vehicle models

Compatible transmitters: FS-HW-G4P, FS-MG4, FS-G7P or FS-MG7, etc. (Refer to TX-RX , etc.)

Model Type: 1/10 crawler, on-road car, off-road short course truck, and truck

Number of Channels: 4

Number of Light Interfaces: 6

RF: 2.4GHz ISM

2.4G Protocol: ANT

Antenna: Single External Antennas

Input Power: LiPo （2-3S）/ NiMH（5-9Cell）

BEC Output: 6V/3A

Continuous/Peak Current: 40A/200A

Motor Type: Brushed Motor

Applicable Motors: 550, 540, 390, 370 or 280 Brushed Motor

Data output: PWM

Resolution: 4096

Temperature Range: -10℃ to +60℃

Humidity Limit: 20%-95%

Waterproof: PPX7

Online Update: None

Dimensions: 44*30*16.7mm

Weight: 43g (Without pin header)

Certification: CE，FCC ID: 2A2UNR4DESC
