#5 HO Scale (NO.5) Universal Metal Couplers with Gearboxes
Medium (9/32") Centerset Shank

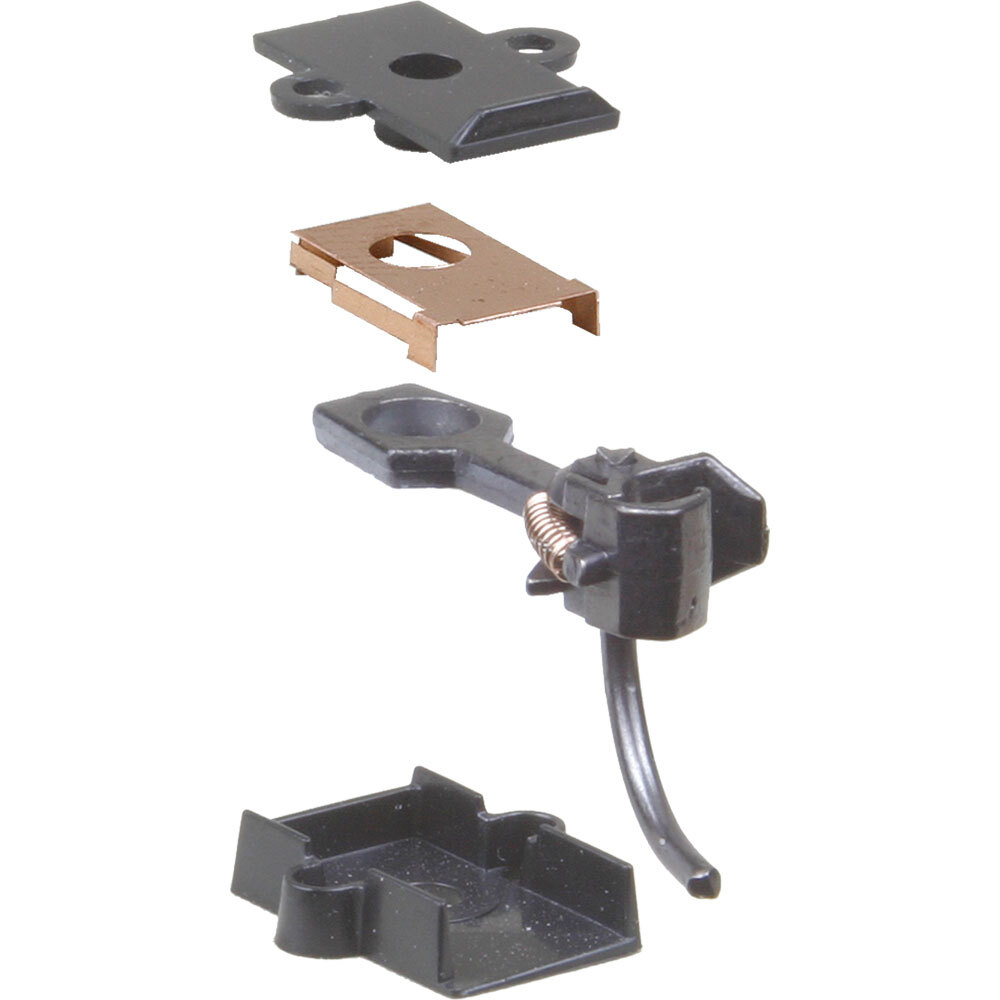

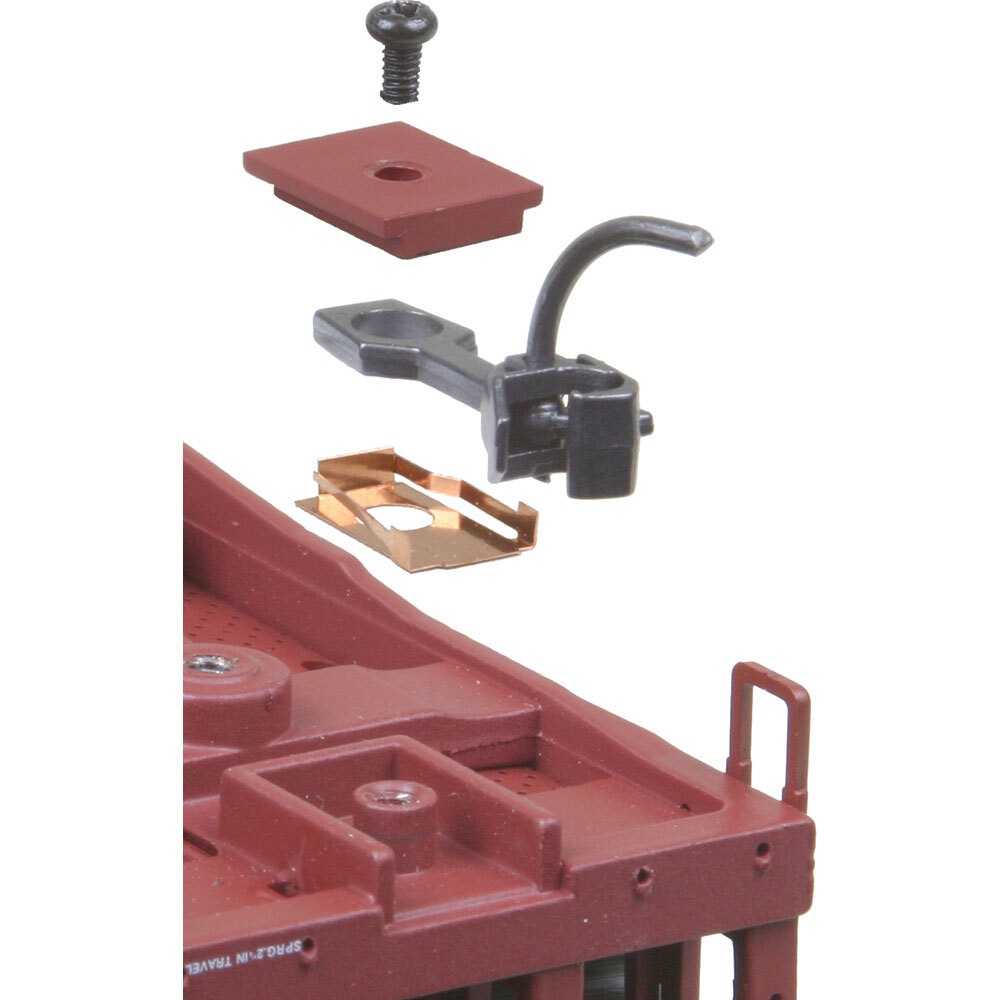

This industry leading coupler features an all metal standard coupler, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The NO.5 Magne-Matic Metal Coupler may be mounted with the included #232 Gearbox or with other manufacturers cast-on coupler pockets.

The 148 Whisker Coupler is equivalent to the NO.5® Metal Coupler.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.

Contents:

2 x Pair NO.5 Metal Couplers - Medium Centerset Shank
2 x Pair #634 Centering Spring NO.5® Style
2 x Pair #232 Gearboxes
2 x #622 Knuckle Springs

NO.5 Metal Coupler Features:

Material: Metal

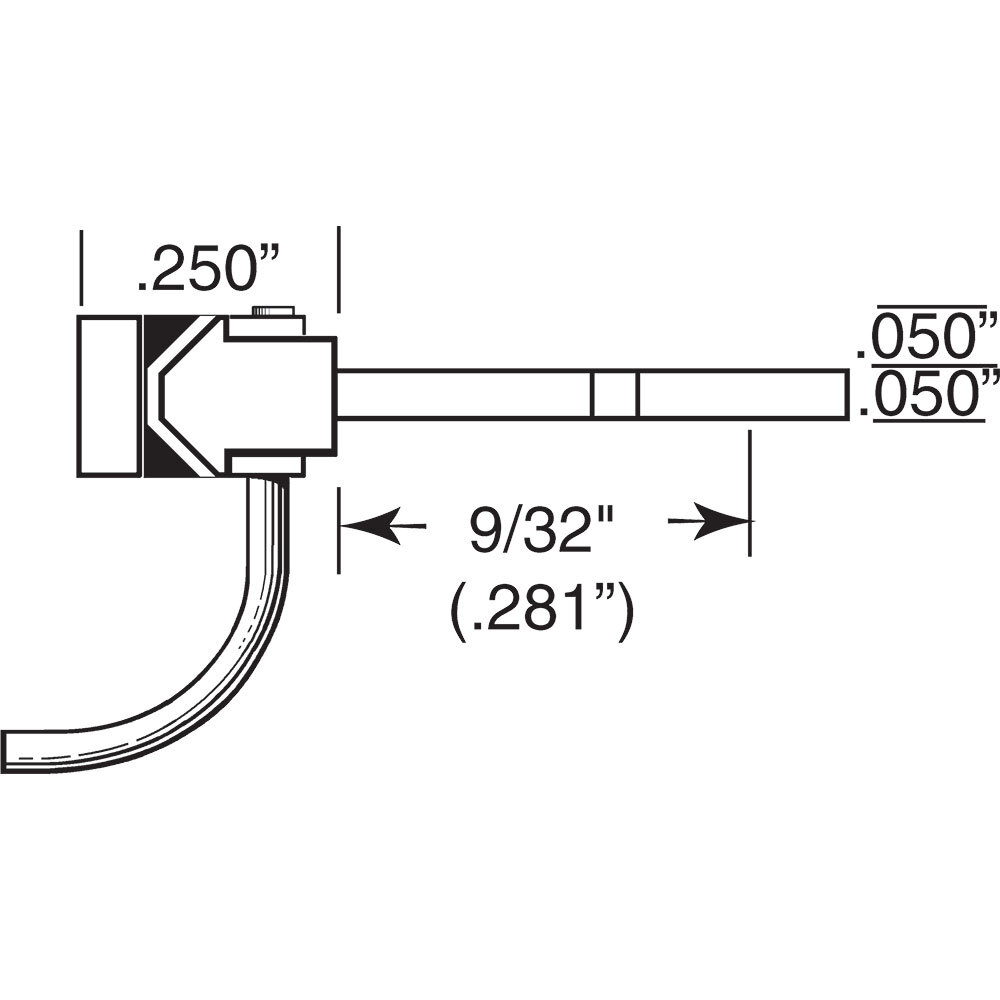

Shank Length: Medium (9/32") (center hole to back of coupler head)

Coupler Offset : Centerset

Knuckle Spring: #622

Centering System: Standard Shank

Centering Spring: #634 Centering Spring NO.5® Style

Head: Standard Head

Works In Place of: #58, #28, #118, #119, #148, #158, most medium centerset "clone" couplers

Works With: #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

#232 Plastic Draft Gearboxes & Lids Features:

Material: Insulated Plastic

Dimensions: 29/64"L x 19/64"W x 7/64"H

Works With: NO.5, #58, 20-Series and all Whisker Couplers

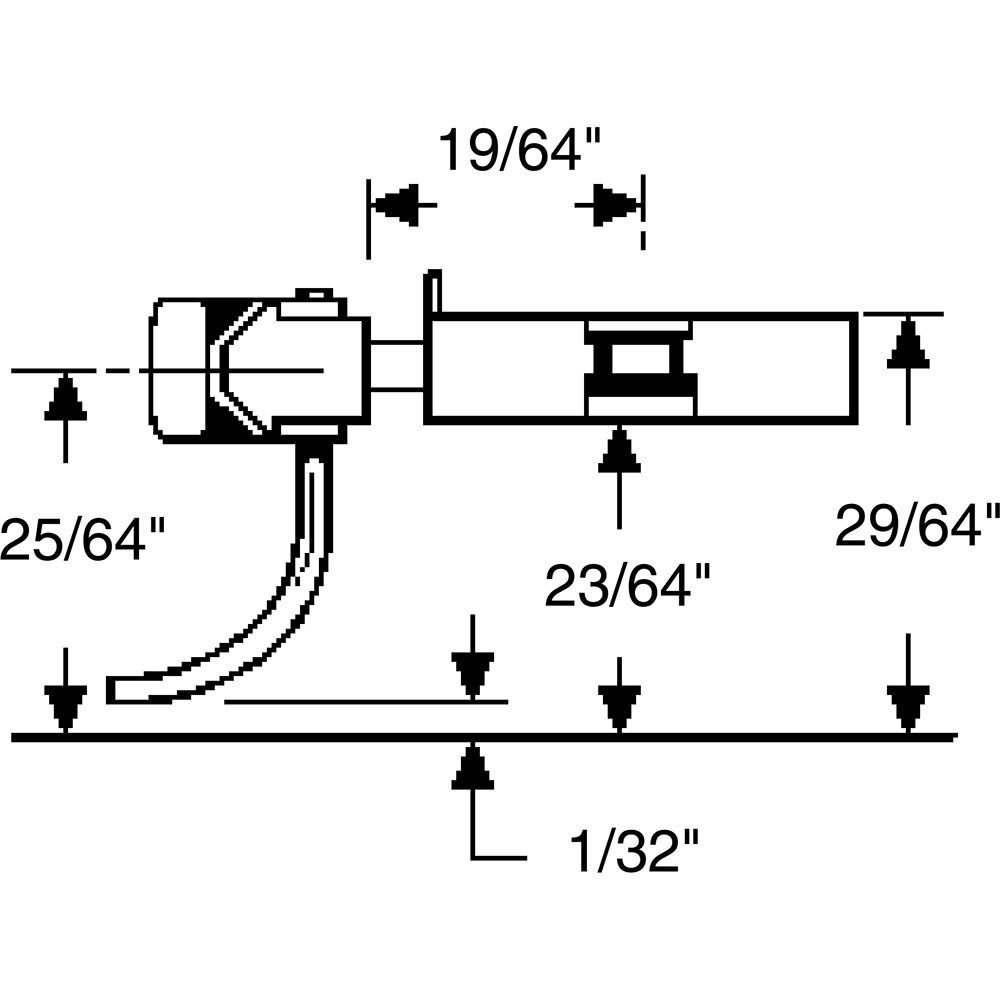

Mounting Specifications:

Mounting Height: 29/64"
Centerline: 25/64"
Trip Pin Height: 1/32"
Center Hole: 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes: 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
