Savox - Standard Size DIgital Servo (6.5kg)

SC0352

SKU: SAVSC0352

$33.99
Share:

Savox

Standard Digital Servo
.13/90 @ 6V

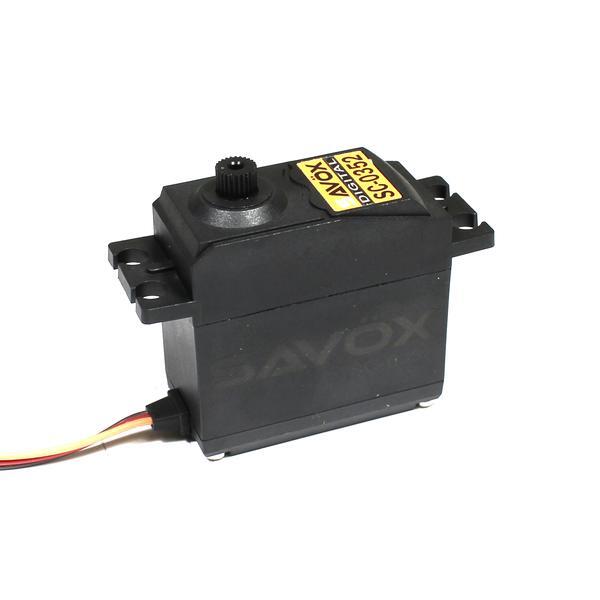

The Savox SC-0352 is considered a 'standard' servo, but outperforms other standard servos with more torque and dual bearing support.

Features:
Dual ball bearing support for precision and gear support.
Industrial plastic gear train is quiet and smooth.
More torque than other standard servos.

Specifications:
  • Torque @ 4.8v - 4.2kg/58.3oz-in
  • Torque @ 6v - 6.5kg/90.3oz-in
  • Speed @ 4.8v - 0.14 sec/60 deg
  • Speed @ 6v - 0.11 sec/60 deg

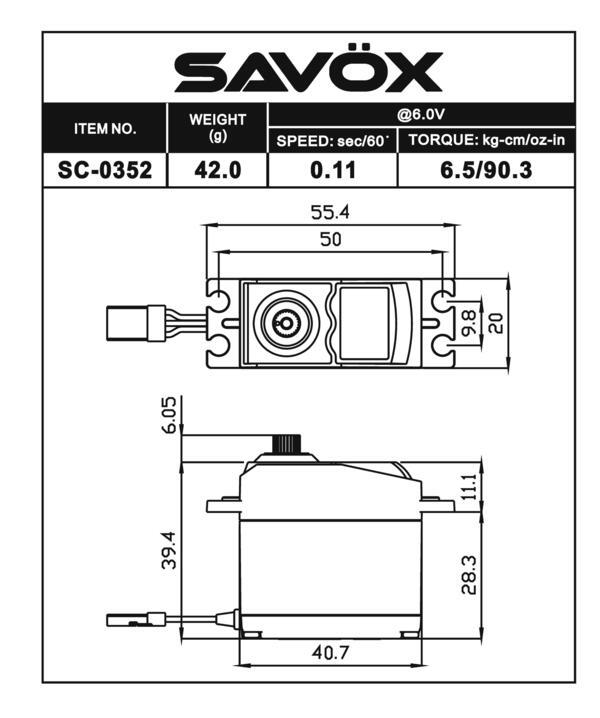

  • Dimensions L x W x H (mm): 40.7 x 20.0 x 39.4
  • Weight: 42.0g
Detailed Specs:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 164° (800 → 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
SKU SAVSC0352
Barcode # 4710006990101
Brand Savox
