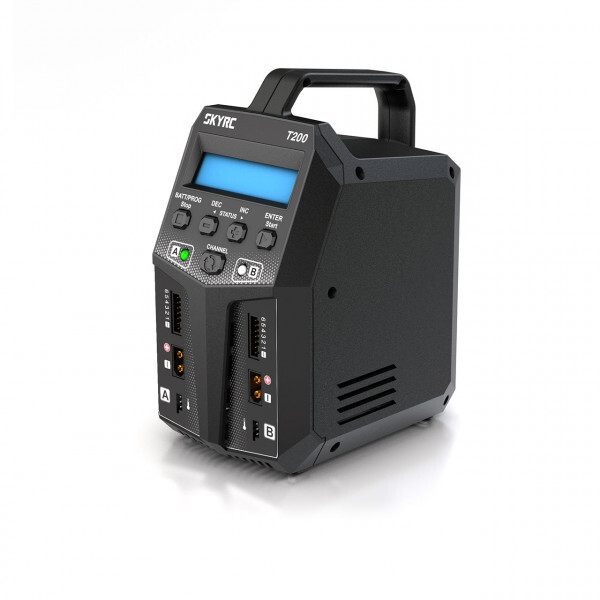

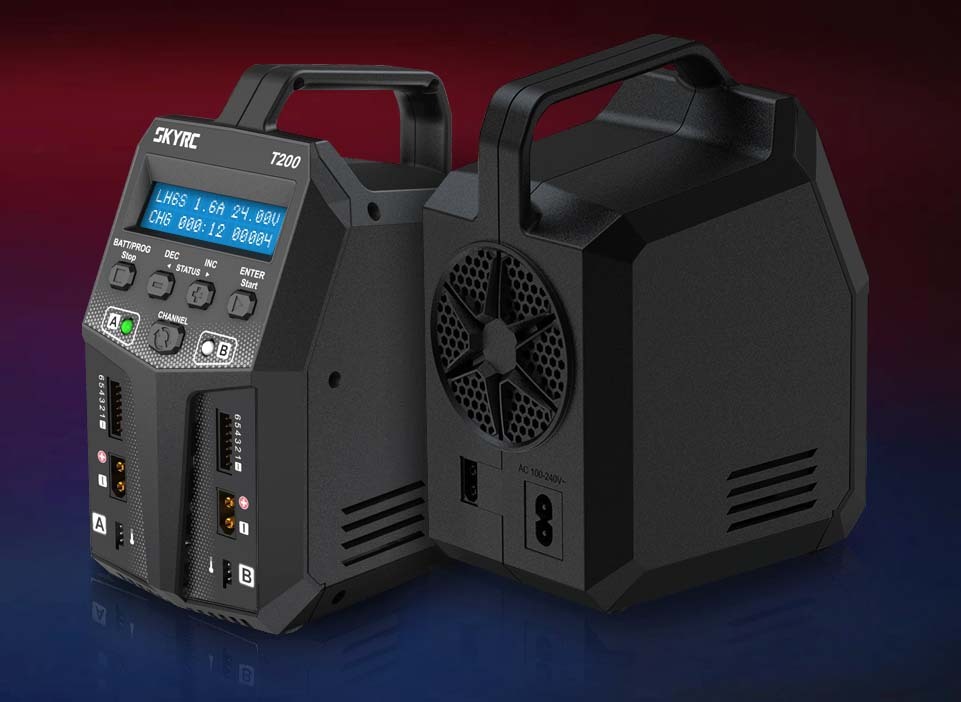

Sky Rc - T200 AC/DC 12A Dual Balance Charger

SKU: SKY100155

$165.00
Share:

SkyRC

T200 AC/DC 12A Dual output Charger Multi Chemistry Balance

T200 comes ready to charge in the most compact design yet while taking up minimal space in the pit area.


Specs:

Size and Weight
  • Case Material: Plastic
  • Case Size: 178x135x96mm
  • Weight: 850g

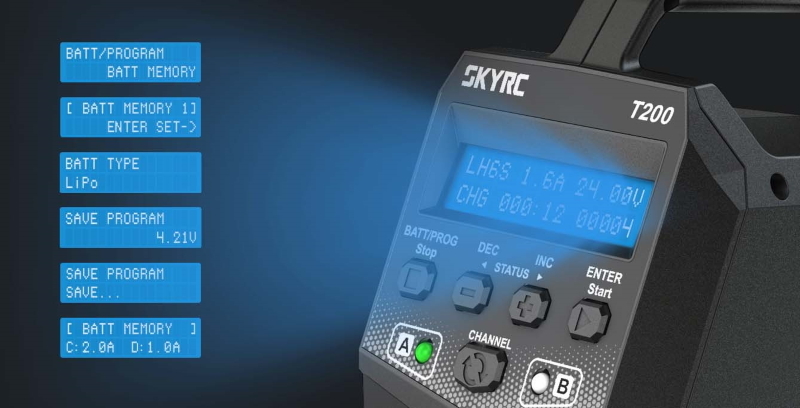

Display
  • Display Type: LCD
  • Display Backlight: Blue

Power
  • DC Input Voltage: 11-18V
  • AC Input Voltage : 100-240V
  • Charge Wattage: 100W X 2
  • Discharge Wattage: 10W

Battery
  • Battery Types/Cells:
  • LiPo/LiHV/LiFe/LiIon: 1-6cells
  • NiMH/NiCd: 1-15cells
  • Pb: 2-20V

Battery Capacity Range:
  • NiMH/NiCd:100-50000mAh
  • LiPo/LiIon/LiFe/LiHV:100-50000mAh
  • Pb: 100-50000mAh

Charge and Discharge
  • NiMH/NiCd: Delta peak detection
  • LiPo: 4.18-4.25V/cell
  • LiFe: 3.58-3.7V/cell
  • Pb: 1.8-2.0V/cellLiIon: 4.08-4.2V/cell
  • LiHV: 4.25-4.35V/cell
  • Charge Current: 0.1A-12.0A
  • Discharge Current: 0.1A-2.0A
  • Balance Cells: 2-6 cells
  • Balance Current: 500mA/cell
  • Safety Timer: 1-120minutes off
  • Charge Method:CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Charging Port:

2 x XT-60 connectors w/2 x JST-XH balance connectors.


Please note: This charger does not come with any charge leads. Appropriate charge leads will need to be purchased separately.



SKU SKY100155
Barcode # 6930460005960
Brand SkyRC
